Free Power Supply schematic suitable for a single 3.5" hard drive

Excellent Hi-Quality Cables made by and / or Supplied By Unitech Electronics Pty. Ltd.

Phone: +61 2 9820 - 3555

sales@unitechelectronics.com

Updated April 6th 2016

<- Back to main index page<- Back to the Free Circuits pageTo the Bottom of this pageTo the Free Circuits page NEXT ->

CLICK HERE for free circuit diagrams NE555 Data using the NE-555 Timer chip.

FREE SINGLE HARD DRIVE POWER CIRCUIT - For the " Do-It-Yourself "

To our other electronics and CAD services pageTo our other electronics and CAD services page


 Please bare in mind that the start-up current or "inrush-current" can be as high as 1.5 Amps initially,
 settling down to a low current of around 800mA,    depending on drive manufacturers specifications.

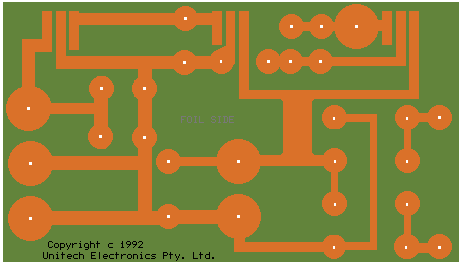

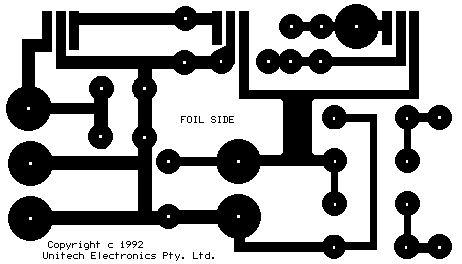

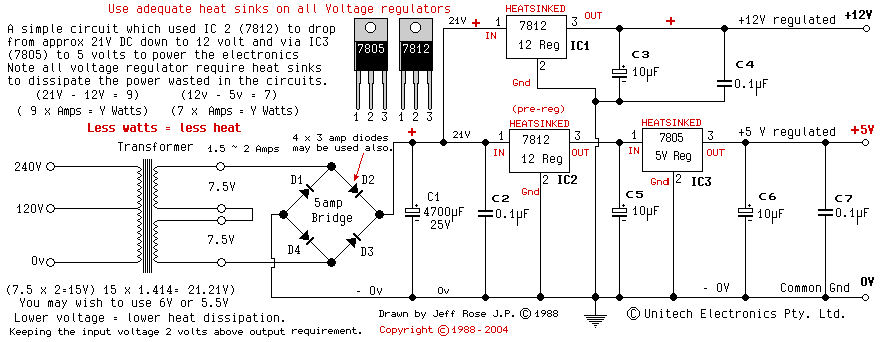

 The circuit above can be made using phenolic  VeroBoard  (TM)  or on a printed circuit board of the layout as shown below.
 The circuit PCB layout ( below ) can be modified ( if you so wish ) larger caps? however works fine as it is layed out (below).
 It would however,be advisable to spend the time and do it correctly , using a small  "self etched"  circuit board and using a
 adequately large heat sink to dissipate the heat ( as a by-product ) of the voltage reduction through the voltage regulators.
 Below, a 15.0 V AC (center tapped dual 7.5 VAC @ 1.amp) 7.5 + 7.5 = 15.0 x 1.414 = 21.21 V DC. Careful with 240 Volts.
 Alternatively, a 12.6 VAC (center tapped dual 6.3 VAC @ 1.amp) 6.3 + 6.3 =12.6 x 1.414 = 17.816 V DC or thereabouts.
 below, a 15.0 VAC (center tapped dual 7.5 VAC @ 1.amp) 7.5 + 7.5 = 15.0 x 1.414 = 21.21 V DC. Care with 240 Volts.
 Try to keep the secondary Output voltages to, say 5.0 Volts AC at 1.5 amps, 5V + 5V = 10V x 1.414 = 14.14 V DC or
 thus resulting in less power wasted (dissipated as heat) into a substancial heat sink. Vin must be 2V above Vout.


For calculating the possible amps available from any of the above transformer calculations,
simply multiply DC amps by 0.62 .    eg:   As in the below bridge rectifier circuit, multiply
Amps DC = 1.5 A x 0.62 = 0.93 Amps or 930 milli Amps.     For a 2 amp calculation, multiply
Amps DC = 2.0 A x 0.62 = 1.24 Amps or 1240 milli Amps. Note: always use a 4700uF capacitor.

Free PSU Layout1

Free PSU Layout3

Free PSU Layout4

To the main index pageTo the Free circuits pageWRITE DOWN THE PART NUMBER AND CLICK HERE FOR ORDERING PAGETo the Free circuits page

Free PSU Layout5

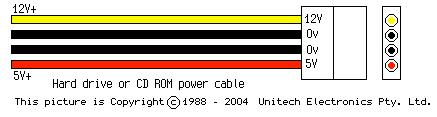

LOW POWER +12V & +5V plug Pin-outs
